JC-2 Impact relay

Main technical parameters

• The rated dc voltage: 220 v, 110 v, 48 v, 24 v.The shock action current and the return current Ic = 0.1 A, not restricted by steady current ΣIc.
• The biggest long-term stable current: ΣIc max = 2 a.
• The power consumption: Σ Ic is not greater than 4 w = 2 a.
• The contact capacity: in voltage not over 220 v, when the current is not more than 1 a can disconnect the dc inductive load (5 + 0.75 ms) for time constant of 20 w.
• The medium strength: the strength of the insulation of the shell tolerated the circuit voltage 2000 v ac 50 Hz 1 min of withstand voltage test and no breakdown or flash-over phenomenon.

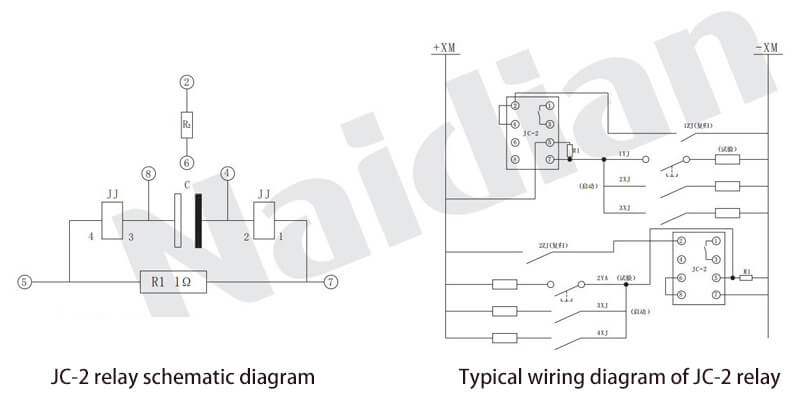

Internal wiring

Appearance and hole size

The relay adopts A11K,A11H,A11Q series housing, the external dimension, and the drawing of installation opening is shown in Figure 3 attached on page 288 of this manual.
