DZB-100 Series with intermediate relay

Ac rating: 100 or 220 (50Hz)
Action resistance setting range: 0.5, 1,2,5,10,15,20
Return coefficient: ≤2
Action time: 0.8 times the action resistance ≤0.2
Power consumption: 18 or less
Contact capacity: 220 V or less 0.2 V DC 20 w AC 30 va (T = 5 ms) (cos Φ = 0.4)

Main technical parameters

Action value: action voltage rating of 30-70%;The operating current shall not be greater than 80% of the rating.
Return values: not less than 5% of the rating.
Value: keep current is not more than 80%;Dzb-138 maintains current no more than 65%;Maintain voltage no more than 70%.
Action time: under the rating is not more than 45 ms.
Return time: when the input amount by rating fell to zero, return time is not greater than 60 ms relay.
Power consumption: no more than 7 w.
Contact capacity: in voltage not over 250 v, current is not more than 5 a, time constant of 5 + 0.75 ms in dc circuit, the inductive load product output contact breaking capacity of 50 w.The output contact can reliably operate and return 5x10 times under the above specified load conditions.The output contact is allowed to be switched on for a long time with 5A.
Medium intensity: the product the conductive terminals together, for the leakage between the charged metal parts or shell, can bear 2000 v (RMS) of 50 hz ac voltage test lasted 1 minute without insulation breakdown or flashover phenomenon.

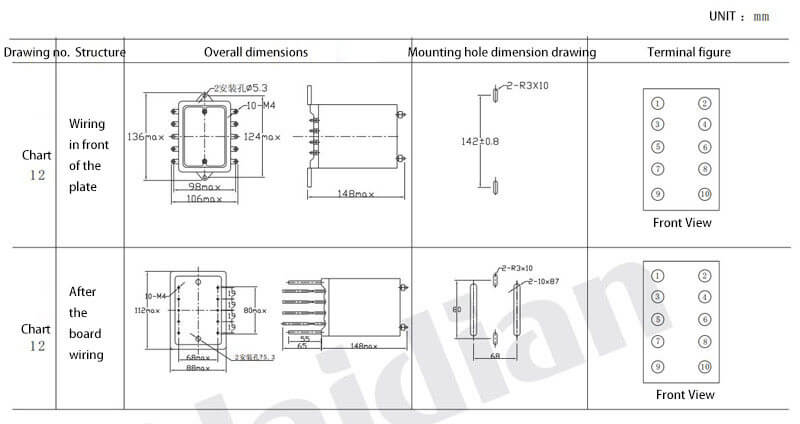

The parameters of the relay are shown in the table below

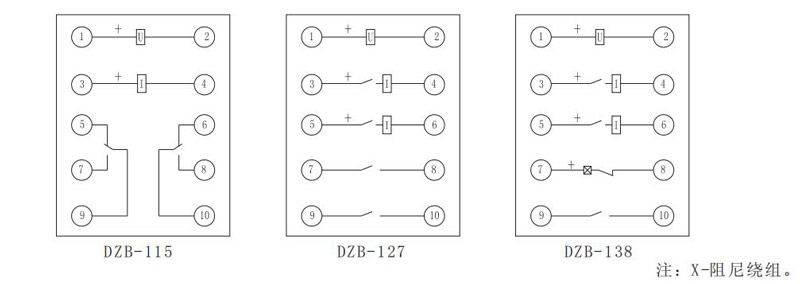

Model	Rated operating value	Rated operating value	Number of holding windings		Number of contacts (Pairs)		Note
Model	Rated operating value	Rated operating value	Current	Voltage	Move together	Move off	Note
DZB- 115	0.5A, 1A, 2A, 4A, 8A	220V, 110V 48V, 24V		1	2	2	Current action voltage is maintained
DZB- 127	220V, 110V 48V, 24V	1A, 2A 4A, 8A	2		4		Voltage action current holding
DZB- 138	220V, 110V 48V, 24V	1A, 2A 4A, 8A	2		3	1	Voltage action current holding
