DZS-100 Series delay intermediate relays

Rated voltage: 220, 110, 48, 36, 12VDC
Operating voltage: 30%~70%Un
Return voltage: ≥5%Un
Contact form: two action and two action and break, three action and break, four action and break
Contact capacity: 100W DC, 100VA AC
Connection mode: front and back of the board

Main technical data

Operating voltage: no more than 30-70% rated;Maintain current no more than 80% of rated current.
Action time: not less than 0.06 s (except DZS - 145).
Return time: DZS - 145 under the rated voltage, the current time is not less than 0.5 s, and then cut off power supply, relay the return time of not less than 0.8 s;Other relays return immediately after power is cut off.
Contact capacity: in voltage not over 250 v, current is not more than 5 a, time constant of 5 + 0.75 ms in dc circuit, the inductive load product output contact breaking capacity of 50 w.The output contact can reliably operate and return 5x10 times under the above specified load conditions.The output contact is allowed to be switched on for a long time with 5A.
Medium intensity: the product the conductive terminals together, for the leakage between the charged metal parts or shell, can bear 2000 v (RMS) of 50 hz ac voltage test lasted 1 minute without insulation breakdown or flashover phenomenon.

Model	Delay way	Contact form	Rated Voltage	Rated holding current	Power consumption	Notes
DZS- 115	Time delay	Two pairs move together	DC 220V 110V 48V 24V		≤3.5W	Voltage action
DZS- 115	Time delay	Two pairs move off			≤3.5W	Voltage action
DZS- 117	Time delay	Four pairs move together
DZS- 127	Time delay	Four pairs move together		1A , 2A 4A , 6A	Voltage≤5.5W	Voltage action
DZS- 136	Time delay	Three pairs move together		1A , 2A 4A , 6A	Current ≤2.5W	Keep the current
DZS- 145	Delay return	Three pairs move together			≤6.5W	Voltage action
DZS- 145	Delay return	Two pairs move off			≤6.5W	One damping winding

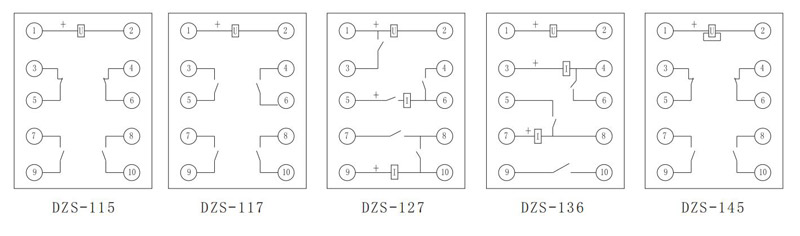

Internal wiring dzs 100xlyszjjdq 2

Appearance and hole size

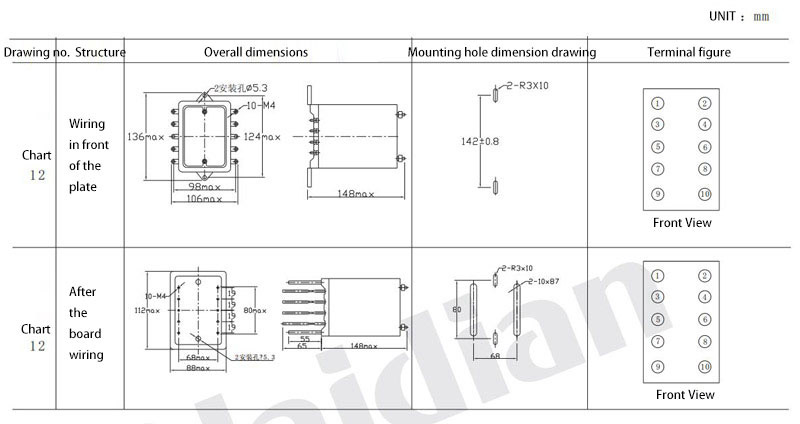

The relay adopts protruding fixed wiring and external dimensions. Please refer to the attached Figure 12 for the installation drawing of holes. dzs 100xlyszjjdq 03
