Setting range: Voltage: 12, 24, 48, 110, 220, 380V
Current: 0.25, 0.5, 1, 2, 4A
Maintenance range: Voltage: 12, 24, 48, 110, 220V
Current: 0.25, 0.5, 1, 2A
Operating voltage and current: ≤70%, ≤80%
Maintain voltage and current: ≤70%, ≤80%
Usage
This series of intermediate relays is used in a variety of protective and automatic devices to increase the number and capacity of contacts in the protection and control circuits.

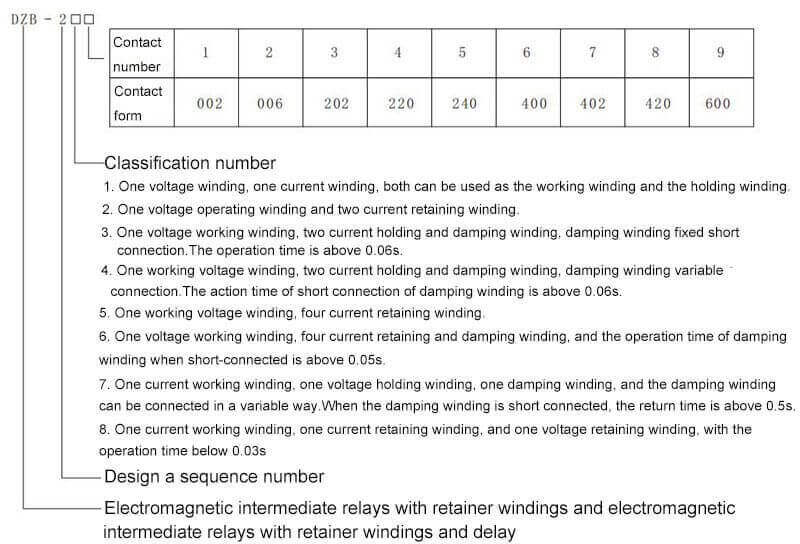

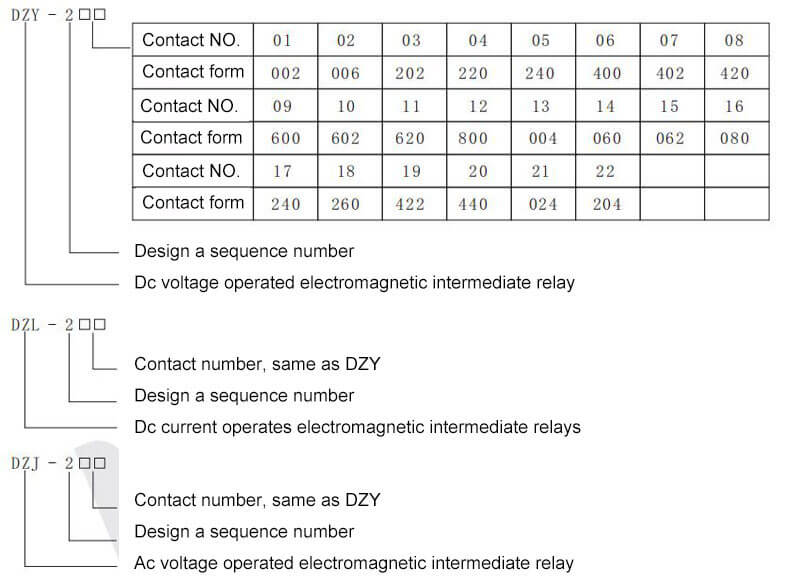

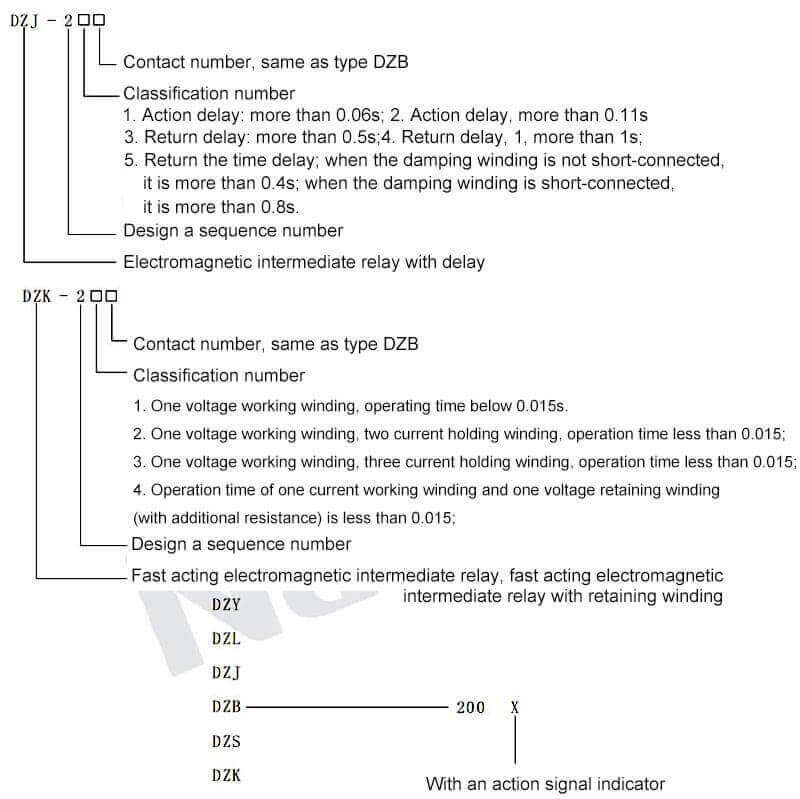

Model meaning
Note: The structure of the relay is A11K,A11H and A11Q. See FIG. 3 attached on page 288 for outline and size of mounting holes.
Structure principle
1. This relay is a valve type electromagnetic relay.The coil is mounted on a "U" shaped magnetic body with an active armature on it and two rows of contacts on both sides of the magnetic body spring apart.The contact shrapnel holds the armature upward in the non-action state to keep a certain gap between the armature and the magnetic body.When the electromagnetic moment between the air gap exceeds the reaction moment, the armature is attracted by the guide magnet, and at the same time the armature presses the contact shrapnel, so that the normally closed contact disconnects and the normally open contact closes to complete the relay work.When the electromagnetic moment decreases to a certain value, the contact and armature are returned to the initial position due to the reaction moment of the contact shrapnel for the next work.
2. The "U" shaped magnetic conducting body of this relay adopts double iron core structure, that is, coils can be installed on both side columns.For DZY,DZL and DZJ types, only one coil can be installed, while for DZB,DZS and DZK types, another core can be installed as required to hold the coil or delay with damping sheet, etc.Relays with vastly different coil types thus have a magnetic conducting body.
3. According to the middle of the relay protection relay is often used in conjunction with signal relay, the relay X products with linkage motion signal indicating and reset machine structure, and take a pair of mechanical keep moving contact to connect distant signals, which can link signal relay skipping, to improve the reliability of protection device, this simplifies wiring, reduce the cost has a certain significance.
Technical data
1. Contact form, winding type and rated data of relay
|
Model |
Contact form |
Winding type |
Rated Voltage（V） |
Rated Current（A) |
|
|
DZY- 201 DZJ- 201 |
DZY- 201X DZJ- 201X |
002 |
one voltage operating winding |
380
220
127
110
100
60
48
36
24
12 |
|
|
DZY- 202 DZJ- 202 |
DZY- 202X DZJ- 202X |
006 |
|||
|
DZY- 203 DZJ- 203 |
DZY- 203X DZJ- 203X |
202 |
|||
|
DZY- 204 DZJ- 204 |
DZY- 204X DZJ- 204X |
220 |
|||
|
DZY- 205 DZJ- 205 |
DZY- 205X DZJ- 205X |
240 |
|||
|
DZY- 206 DZJ- 206 |
DZY- 206X DZJ- 206X |
400 |
|||
|
DZY- 207 DZJ- 207 |
DZY- 207X DZJ- 207X |
402 |
|||
|
DZY- 208 DZJ- 208 |
DZY- 208X DZJ- 208X |
420 |
|||
|
DZY- 209 DZJ- 209 |
DZY- 209X DZJ- 209X |
600 |
|||
|
DZY- 210 DZJ- 210 |
DZY- 210X DZJ- 210X |
602 |
|||
|
DZY- 211 DZJ- 211 |
DZY- 211X DZJ- 211X |
620 |
|||
|
DZY- 212 DZJ- 212 |
DZY- 212X DZJ- 212X |
800 |
|||
|
DZY- 213 DZJ- 213 |
DZY- 213X DZJ- 213X |
004 |
|||
|
DZY- 214 DZJ- 214 |
DZY- 214X DZJ- 214X |
060 |
|||
|
DZY- 215 DZJ- 215 |
DZY- 215X DZJ- 215X |
062 |
|||
|
DZY- 216 DZJ- 216 |
DZY- 216X DZJ- 216X |
080 |
|||
|
DZY- 217 DZJ- 217 |
DZY- 217X DZJ- 217X |
240 |
|||
|
DZY- 218 DZJ- 218 |
DZY- 218X DZJ- 218X |
260 |
|||
|
DZY- 219 DZJ- 219 |
DZY- 219X DZJ- 219X |
422 |
|||
|
DZY- 220 DZJ- 220 |
DZY- 220X DZJ- 220X |
440 |
|||
|
DZY- 221 DZJ- 221 |
DZY- 221X DZJ- 221X |
024 |
|||
|
DZY- 222 DZJ- 222 |
DZY- 222X DZJ- 222X |
204 |
|||
|
Model |
Contact form |
Winding type |
Rated voltage（V) |
Rated Current（V) |
|
DZL- 201 DZL- 201 X |
002 |
One current working winding |
|
0.25
0.5
1
2
4
8 |
|
DZL- 202 DZL- 202 X |
006 |
|||
|
DZL- 203 DZL- 203 X |
202 |
|||
|
DZL- 204 DZL- 204 X |
220 |
|||
|
DZL- 205 DZL- 205 X |
240 |
|||
|
DZL- 206 DZL- 206 X |
400 |
|||
|
DZL- 207 DZL- 207 X |
402 |
|||
|
DZL- 208 DZL- 208 X |
420 |
|||
|
DZL- 209 DZL- 209 X |
600 |
|||
|
DZL- 210 DZL- 210 X |
602 |
|||
|
DZL- 211 DZL- 211 X |
620 |
|||
|
DZL- 212 DZL- 212 X |
800 |
|||
|
DZL- 213 DZL- 213 X |
004 |
|||
|
DZL- 214 DZL- 214 X |
060 |
|||
|
DZL- 215 DZL- 215 X |
062 |
|||
|
DZL- 216 DZL- 216 X |
080 |
|||
|
DZL- 217 DZL- 217 X |
242 |
|||
|
DZL- 218 DZL- 218 X |
260 |
|||
|
DZL- 219 DZL- 219 X |
422 |
|||
|
DZL- 220 DZL- 220 X |
440 |
|||
|
DZL- 221 DZL- 221 X |
024 |
|||
|
DZL- 222 DZL- 222 X |
204 |
|||
|
DZB- 213 DZB- 213 X |
202 |
A voltage winding, a winding, can be used as a working winding or holding winding |
12 24 48 110 220 |
|
|
DZB- 214 DZB- 214 X |
220 |
|||
|
DZB- 217 DZB- 217 X |
402 |
|||
|
DZB- 226 DZB- 226 X |
400 |
One voltage operating winding, two current operating winding |
||
|
DZB- 228 DZB- 228 X |
420 |
|||
|
DZB- 233 DZB- 233 X |
202 |
One voltage operating winding, two current retaining and damping winding |
||
|
DZB- 243 DZB- 243 X |
202 |
|||
|
DZB- 257 DZB- 257 X |
402 |
One voltage operating winding and four current retaining winding |
||
|
DZB- 259 DZB- 259 X |
600 |
|||
|
DZB- 262 DZB- 262 X |
006 |
One voltage operating winding, four current retaining and damping winding |
||
|
DZB- 278 DZB- 278 X |
420 |
One current operating winding, one voltage retaining winding, and one damping winding |
110 |
|
|
DZB- 284 DZB- 284 X |
220 |
One voltage operating winding and four current retaining winding |
24 48 110 220 |
|
|
DZS- 213 DZS- 213 X |
202 |
A voltage operating winding |
||
|
DZS- 216 DZS- 216 X |
400 |
|||
|
DZS- 229 DZS- 229 X |
600 |
|||
|
DZS- 233 DZS- 233 X |
202 |
|||
|
DZS- 236 DZS- 236 X |
400 |
|||
|
DZS- 248 DZS- 248 X |
420 |
|||
|
DZS- 249 DZS- 249 X |
600 |
|||
|
DZS- 254 DZS- 254 X |
220 |
One voltage operating winding and one damping winding |
|
Model |
Contact Form |
Winding type |
Rated Voltage（V) |
Rated Current（A) |
|
DZK- 211 DZK- 211 X |
002 |
A voltage operating winding |
24 48 110 220 |
0.25 0.5 1，2 4，8 |
|
DZK- 214 DZK- 214 X |
220 |
|||
|
DZK- 216 DZK- 216 X |
400 |
|||
|
DZK- 226 DZK- 226 X |
400 |
One voltage operating winding and two current retaining winding |
||
|
DZK- 236 DZK- 236 X |
400 |
One voltage operating winding and three current retaining winding |
||
|
DZK- 244 DZK- 244 X |
220 |
One current operating winding and one voltage retaining winding |
Note: In addition to the main contact mentioned above, the Type X also has a signal contact that is mechanically held.
2. Action value, hold value
2.1 Action voltage and maintenance voltage shall not be greater than 70% of the rated voltage, and dzJ-200 action voltage shall not be greater than 80% of the rated voltage;Action voltage not less than 30% rated voltage, DZK-200 and DZB-243 not less than 50% rated voltage.
2.2 Operating voltage and holding current shall not be greater than 80% of the rated current.
3. Return value: not less than 5% rating value, dzB-200 and DZS-200 not less than 3% rating value.
4. Action time, return time
|
Model |
Action time（S) |
Return Time（S) |
||
|
General |
Stub damping winding |
General |
Stub damping winding |
|
|
DZY- 200 DZY- 200 X |
≤0 . 045 |
|
≤0 . 06 |
|
|
DZJ- 200 DZJ- 200 X |
|
|
||
|
DZL- 200 DZL- 200 X |
|
|
||
|
DZB- 210 DZB- 210 X |
|
|
||
|
DZB- 220 DZB- 220 X |
|
|
||
|
DZB- 230 DZB- 230 X |
|
≥0 . 06 |
|
|
|
DZB- 240 DZB- 240 X |
≤0 . 045 |
≥0 . 06 |
|
|
|
DZB- 250 DZB- 250 X |
|
≤0 . 06 |
|
|
|
DZB- 260 DZB- 260 X |
|
|
|
|
|
DZB- 270 DZB- 270 X |
|
|
≥0 . 5 |
|
|
DZB- 284 DZB- 284 X |
≤0 . 03 |
|
|
|
|
DZS- 210 DZS- 210 X |
≥0 . 06 |
|
|
|
|
DZS- 220 DZS- 220 X |
≥0 . 11 |
|
|
|
|
DZS- 230 DZS- 230 X |
|
|
≥0 . 5 |
|
|
DZS- 240 DZS- 240 X |
|
|
≥1 . 1 |
|
|
DZS- 250 DZS- 250 X |
|
|
≥0 . 4 |
≥0 . 8 |
|
DZK- 210 DZK- 210 X |
≤0 . 015 |
|
|
|
|
DZK- 220 DZK- 220 X |
|
|
|
|
|
DZK- 230 DZK- 230 X |
||||
|
DZK- 240 DZK- 240 X |
||||
5.Power consumption
|
Model |
Power consumption |
Note |
|
|
Voltage loop |
Current loop |
||
|
DZY- 200 DZY- 200 X |
5 W |
|
|
|
DZJ- 200 DZJ- 200 X |
5 VA |
|
|
|
DZL- 200 DZL- 200 X |
|
5 W |
|
|
DZB- 200 DZB- 200 X |
5 W |
2 . 5 W |
Specification of current operation: 5 W |
|
DZS- 200 DZS- 200 X |
5 W |
|
|
|
DZK- 200 DZK- 200 X |
8 W |
2 . 5 W |
Including external resistance |
6. Thermal stability (ambient temperature 40℃) :
6.1 Long-term tolerance of voltage winding 110% rated voltage temperature rise shall not be greater than 65℃.
6.2 The current winding can receive three times of rated current, lasting for 5s.
7. Contact capacity
|
Nature of the load |
Main contact |
Signal Contact |
|
Dc inductive circuit below 250V (T= 5x10-3) |
50W |
30W |
|
Ac circuit below 250V |
250VA |
100VA |
|
Long term current allowed |
5A |
3A |
8. Resistance to humidity and heat
The highest temperature is + 40 ℃, the alternating hot and humid test procedure and method of test after 2 weeks (48 h), with the open circuit voltage of 500 v test instrument measurement, relay together for the leakage of the conductive circuit between charged metal parts and shell, and coil circuit of contact between the insulation resistance of not less than 4 m Ω.
9. Insulation strength
The relay circuit can withstand ac of 50Hz, voltage of 2kV and duration of 1min between non-conductive metal parts and enclosures and circuits that have no electrical connection.The inter-winding energy resistance of relay coil can withstand ac 50Hz voltage 1kV test lasting 1 minute.
10. Service life
After the electrical life can still meet the requirements of 4.2-4.4.After the adjustment of mechanical life, it can still meet the requirements of 4.2-4.4.
|
Model |
Electrical life |
Institutional life |
Note |
|
DZY-200 DZY-200X |
100000times |
3000000times |
The overstroke clearance of the contact sheet shall be adjusted after every 100,000 cycles |
|
DZJ- 200 DZJ-200X |
|||
|
DZL- 200 DZL-200X |
|||
|
DZB- 200 DZB-200X |
1000次 |
|
|
|
DZS- 200 DZS-200X |
|||
|
DZK- 200 DZK-200X |
11. Coil resistance value
11.1 DZY-200 DC intermediate relay
|
Model |
Resistance (Ω) |
Specifications |
220V |
110V |
48V |
24V |
12V |
|
DZY-200 |
10300 |
2800 |
500 |
125 |
35 |
||
11.2 DZJ-200 AC intermediate relay (see Table 7)
|
Model |
Resistance (Ω) |
Specifications |
380V |
220V |
127V |
110V |
100V |
60V |
36V |
12V |
|
DZY-200 |
32000 |
10300 |
4100 |
2800 |
2400 |
810 |
300 |
35 |
||
Note: The resistance value is the resistance value of the disconnected rectifier bridge
11.3 DZB-200 intermediate relay with holding (see Table 8)
|
Model |
Resistance (Ω) |
Specifications |
220V |
110V |
48V |
24V |
0.25A |
0.5A |
1A |
2A |
4A |
8A |
|
DZL-200 |
---- |
---- |
---- |
---- |
70 |
18 |
4.4 |
1.2 |
0.41 |
0.22 |
||
|
DZB-210 |
10300 |
2800 |
500 |
125 |
||||||||
|
DZB-220 |
|
|
|
|
36 |
8.5 |
2.3 |
0.6 |
0.22 |
0.11 |
||
|
DZB-230 |
14600 |
4100 |
820 |
210 |
8.4 |
2.4 |
0.74 |
0.31 |
0.19 |
0.09 |
||
|
DZB-240 |
||||||||||||
|
DZB-250 |
10300 |
2800 |
500 |
125 |
18 |
5 |
1.37 |
0.34 |
0.14 |
0.06 |
||
|
DZB-260 |
14600 |
4100 |
820 |
210 |
4.2 |
1.2 |
0.37 |
0.16 |
0.09 |
0.04 |
||
|
DZB-270 |
---- |
10000 |
---- |
---- |
19 |
5.5 |
1.8 |
0.6 |
0.38 |
0.28 |
||
|
DZB-280 |
10300 |
2800 |
500 |
125 |
55 |
15.5 |
3.6 |
1.04 |
0.35 |
0.16 |
||
|
19.5 |
5.6 |
1.45 |
0.48 |
0.14 |
0.06 |
|||||||
11.4DZS-200 fast intermediate relay (see Table 9)
|
Model |
Resistance (Ω) |
Specifications |
220V |
110V |
48V |
24V |
DZS-250 Damping winding |
|
DZS-200 |
12000 |
3000 |
700 |
170 |
5 |
||
11.5 DZK-200 delay intermediate relay (see table 10,11)
|
Model |
Resistance (Ω) |
Specifications |
220V |
110V |
48V |
24V |
0.25A |
0.5A |
1A |
2A |
4A |
8A |
|
DZK-210 DZK-220 DZK-230 DZK-240 |
1600 |
460 |
96 |
24 |
---- |
---- |
---- |
---- |
---- |
---- |
||
|
17X2 |
4.53X2 |
1.28X2 |
0.55 X2 |
0.33 X2 |
0.16 X2 |
|||||||
|
21X3 |
5.2X3 |
1.4X3 |
0.08 X3 |
0.26 X3 |
0.08 X3 |
|||||||
|
53 |
14.5 |
3.6 |
1.15 |
0.42 |
53 |
|||||||
|
Specifications |
220V |
110V |
48V |
24V |
|
Additional resistance Ω |
5100 |
1200 |
220 |
56 |
