Rated voltage: 220, 110, 48, 12VDC
Operating voltage: 30%~70%Un
Return voltage: ≥5%Un
Contact form: 891-895
Contact capacity: 100W DC, 100VA AC
Connection mode: front and back of the board
Installation method: A11K A11P A11H A11Q
089, 090,
Rated current: 5A, 10A
Action current: 5A: (2, 2.5, 3, 3.5, 4, 4.5, 5A)
10A: (4, 5, 6, 7, 8, 9, 10A)
Return coefficient: ≥0.85
Transient multiple: 2-8 times
Power consumption: ≤15VA
10 times operating current time: 11:0.5 ~ 4S, 12:2 ~ 16s, 13:2 ~ 4s, 14:8 ~ 16s
Contact form: move and move break, two move and move break
Dimensions: 149×129×230
Summarize
The relay is a kind of auxiliary relay with delay used as relay protection circuit and control circuit to increase the number of control objects or enlarge the control capacity in various relay protection and automation equipment and secondary circuit of power system.
Structural characteristics
The relay is a valve type electromagnetic relay with a rigid U - type mechanism.The structure adopts the standard A-series housing, namely A11K, for embedded installation, P11P for splicing embedded installation, A11H for post-protruding installation wiring, and A11Q for pre-protruding installation wiring
Main technical data
The main technical data of ZS-890 series delay intermediate relay are shown in the table
|
Model |
Rating Value DC(V) |
Action time（ms) |
Return time( S) |
Action value |
Return Time |
Power consumption（W） |
Contact capacity |
The quality |
|||
|
Normal Time |
Short Time |
DC |
AC |
Ac circuit |
Long term current（A) |
||||||
|
DZS-891 |
220 110 48 24 |
0.06 |
|
|
（30%-70） Rating Value |
≤80 % Rating Value |
≥3 % Rating Value |
≤5 |
250 |
5 |
≤1.5 |
|
DZS-892 |
0.11 |
|
|
||||||||
|
DZS-893 |
|
0.5 |
|
||||||||
|
DZS-894 |
|
1.1 |
|
||||||||
|
DZS-895 |
|
0.4 |
0.8 |
||||||||
Wiring diagram of back terminal

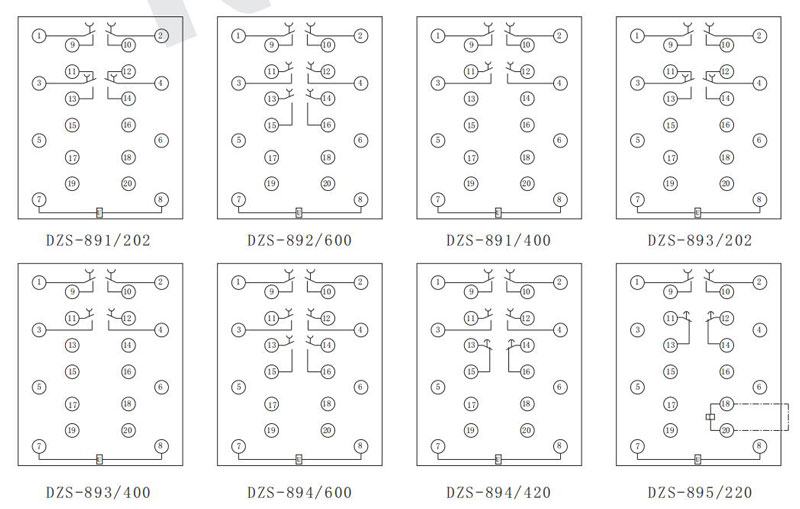

DZ-890 series delay intermediate relay backside terminal wiring is shown in the figure
Appearance and hole size

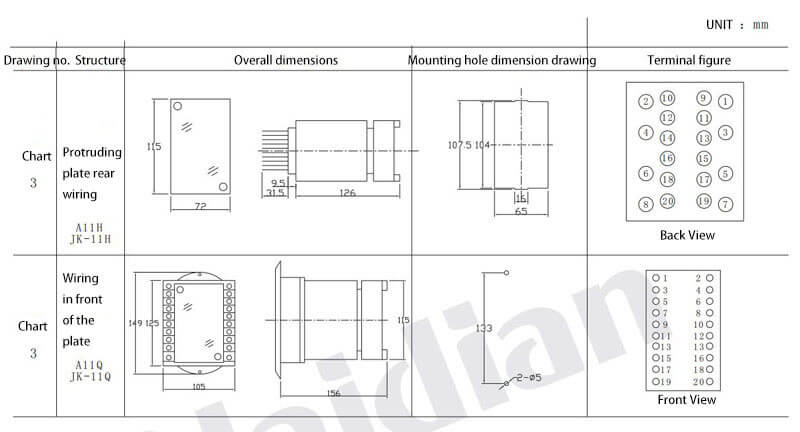

This relay adopts A11K, A11H, A11Q shells, and the installation opening size is shown in Figure 3 on page 288 of this manual.
