GBZ DZB Series terminal platoon jump intermediate relay

Usage

This series of intermediate relays is used in a variety of protection and automatic control devices to increase the number and capacity of protection and control loop contacts.

Structure and principle of action

The static anti-jump intermediate relay needs auxiliary power, but in practical use, many used relays do not have auxiliary power, and there are many occasions when users do not want to use auxiliary power.To this end, a common anti - jump intermediate relay without auxiliary power source is developed.The working principle is as follows: multiple small intermediate relays are logically combined.

Product features

1. Because of the small sealing center, it can be used in occasions with vibration and dust.
2. The current winding adopts electronic clamp, which can work in the working state of several times over rated current.
3. Fast operation time and high reliability.
4. Low power consumption and long life.

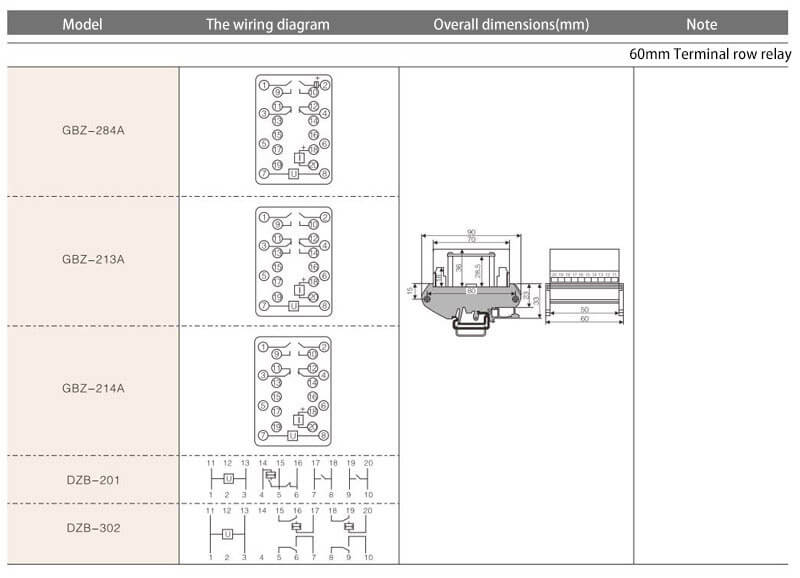

Technical conditions, performance and common anti - jump intermediate relay.
