JZS-7H Series oscillating relay

Download

Product overview
Product parameter

Usage

JZS-7H series oscillating relay is used in all kinds of protection and control circuit that may generate oscillating phenomenon, so as to avoid continuity of production department, safety accident and equipment damage caused by oscillating phenomenon, etc. This series product JZS-7 is derived from adjustable delay intermediate relay.

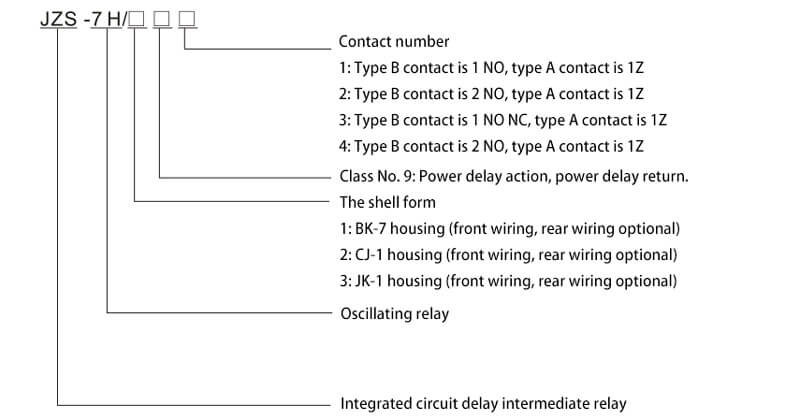

Product Overview

Using the environment

1.Environmental reference condition
Ambient temperature: 20℃±2℃
Relative humidity: 45%-75%
Atmospheric pressure: 80kPA-106kPa
Limit temperature during storage and transportation: -25℃-75℃
Altitude of use place: not higher than 2500 meters
There is no explosive dangerous goods and no corrosive gas in the surrounding media of the use environment;The concentration of the conducting dust should not reduce the insulation level below the allowable value.

2. Normal conditions of use
Ambient temperature: -25℃-+40℃
Ambient relative humidity: no more than 90%
Atmospheric pressure: 80kPA-110kPa

3. Relay ratings
Rated voltage: 48V, 110V,220V,AC,DC

4.Contact capacity：
Type A contact: AC250V, COS = 1.05A DC250V connect 5A, t=5mS,50W
Type B contact: AC250V, COS = 1.05A DC250V connect 5A, t=5mS,500W

5. Power consumption shall not be greater than 5W at rated voltage

6. 1000V shaking table was used to measure the insulation resistance leading-out terminal for shell insulation resistance between the screw is not less than 10 m Ω.

7. Insulation resistance

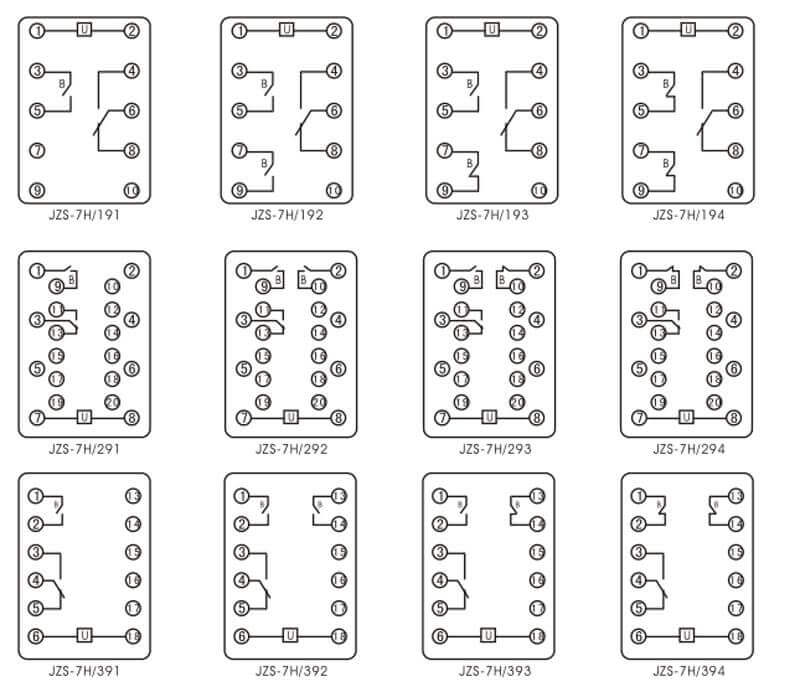

Internal wiring diagram

jzs 7hxlhdjdq 3
