ZJ4 Intermediate relay

Rated voltage: AC220V,127V,100V.
Action value: no more than 70%.
Return value: not less than 55.
Power consumption: no more than 6VA.

Download

Product overview
Product parameter

Usage

This relay is used in the AC operating loop to extend the control range of the main protective relay or to increase the contact capacity.

主要技术数据

Rated voltage: AC220V,127V,100V.
Action value: no more than 70%.
Return value: not less than 55.
Power consumption: no more than 6VA.
Contact capacity: In the dc inductive load circuit with voltage no more than 250V, current no more than 5A and time constant of 5+0.75ms, the disconnect capacity of the product output contact is 50W.The output contact can reliably operate and return 5X10 times under the above specified load conditions.The output contact is allowed to be switched on for a long time with 5A.
Dielectric strength: all conductive terminals of the product are connected together, and can withstand 2000V (effective value) 50Hz AC voltage test for 1 minute between exposed non-charged metal parts and the shell without insulation breakdown or flasticity phenomenon.

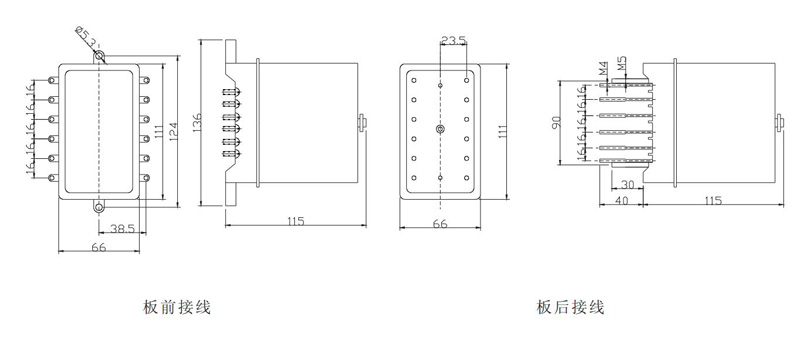

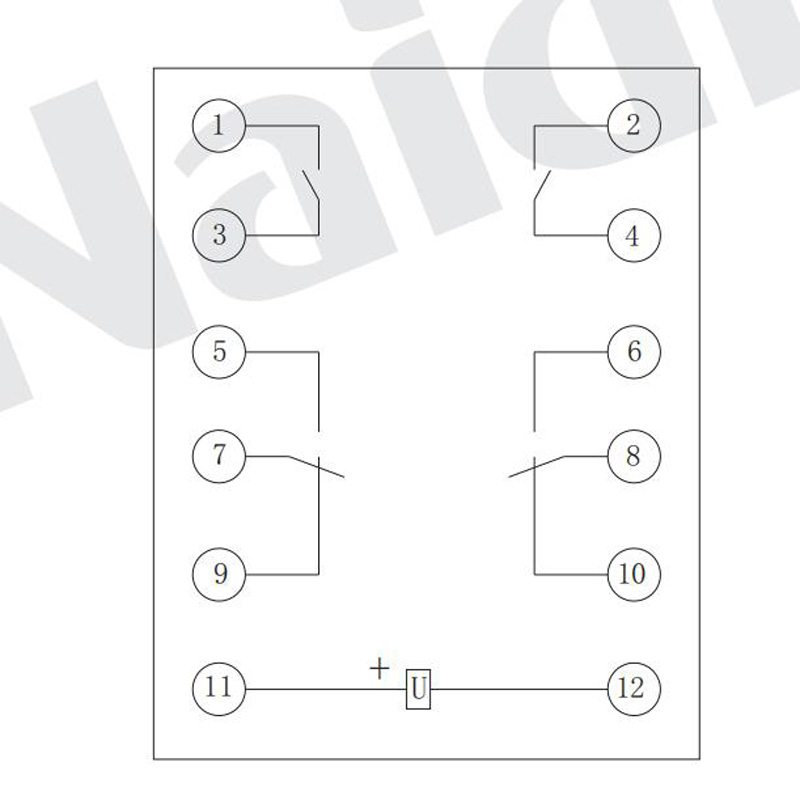

Internal wiring diagram

zj4xzjjdq 2
