ZZS-7 Series opening, closing and power monitoring integrated control device

Download

Product overview
Product parameter

Application Range

ZZS-7 series opening, closing and power monitoring integrated control device is used in various automatic control circuits for DC or AC operation, which can directly control the opening and closing circuit, monitor and control the power supply, and conveniently adjust the closing delay and power monitoring the power failure delay.

Product Overview

This product is an integrated control device that replaces closing relay, opening relay and power monitoring relay. It has the following characteristics:

a) Small in size and strong in function, suitable for small drawer type and other places where relays need to be used

b) In the middle of the export control, imported high-performance sealed relay is adopted, moisture-proof, dust-proof, continuous line, high reliability, with power supply indication and action indication, long electrical life and long mechanical life.

Main technical parameters

1.Rated DC voltage：24,48V，110V,220V.380VDC/AC

2. Contact capacity: the inductive load of 50W with a dc of less than 250V =5ms and the allowable current of 5A

3. The intermediate action delay of exit shall be no more than 15MS, the return delay closing circuit shall be no more than 15MS, and the other circuits shall be adjustable from 15Ms-2S

4. Return value: Return voltage not greater than 5% rated

5. Maximum power consumption: DC no more than 3W.

6. Electrical life: the contact shall not be less than 10000 times under rated load

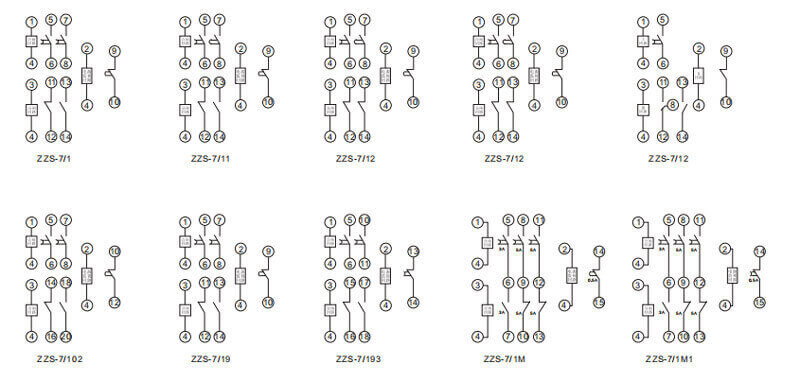

Internal wiring diagram

zzs 7 xlfz hz dyjszhkzzz 6
