NDD series forward and reverse control is suitable for AC 50Hz, rated voltage 380V and below the control circuit as a delay element, according to the set time to connect or break the circuit.
Main technical parameter
1. Working power supply: AC220V, 380V 50Hz, allowable voltage fluctuation range (85% 110%) Ue.
2. Repetition error: ≤2%;
3. Contact capacity: AC220V 3A COS =1;
4. Mechanical life: 1×10 times;
5. Electric life: 1×10 times;
6. Installation method: device type;
7. Control time
|
Model |
NDD5-A(JZF-01) |
NDD5-B(JZF-05) |
NDD5-C(JZF-06) |
NDDB-D(JZF-07) |
|
Control time |
Forward (reverse) : 25s Stop: 5 s
|
Forward (reverse) turn: 15s Stop: 5 s Take off the water: 5 s
|
Turn head (reverse) : 1, 2, 4, 8, 16s Stop :0.5, 1, 2, 4s |
Positive (reverse) conversion: 1, 2, 4, 8min 1, 2, 4, 8s (1, 2, 4, 88)×15 Stop: 1, 2, 4, 8s |

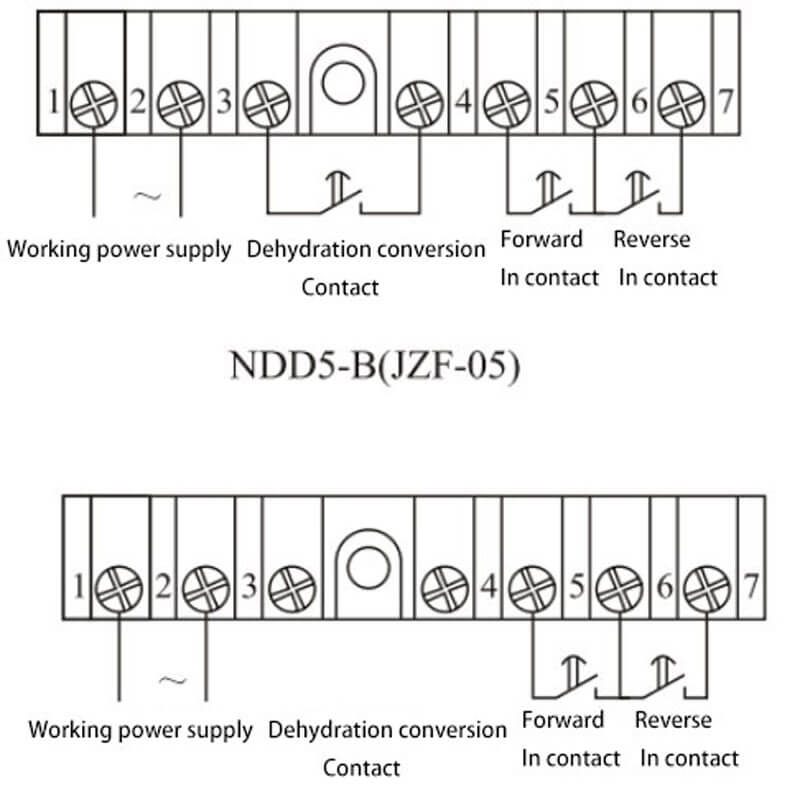

The wiring diagram

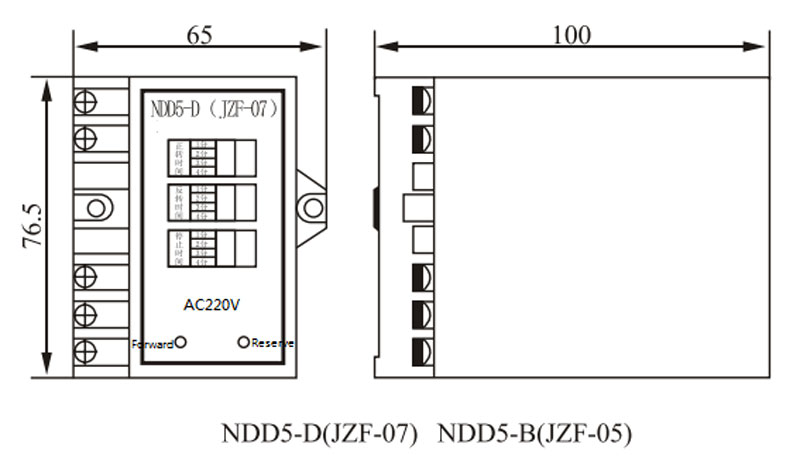

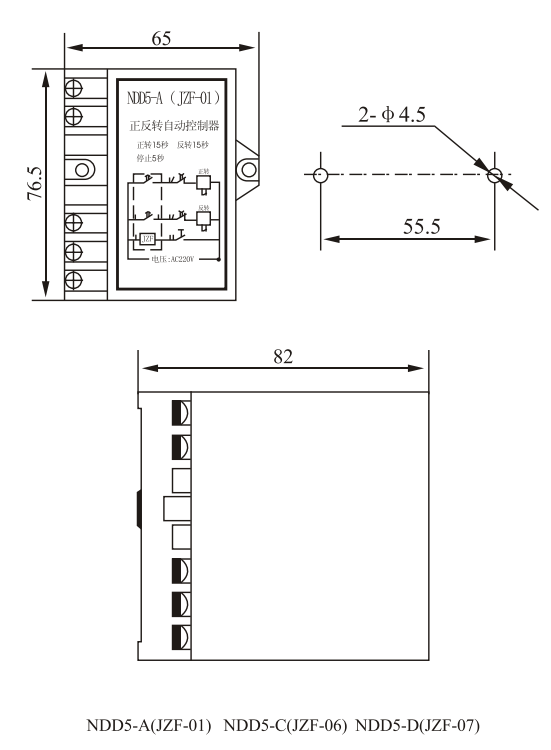

Appearance and installation dimensions
Directions for use
Products on the front panel lights indicate the current work status, such as a forward indicator indicates 5, 6, convert contact connected, reverse indicator indicates switch contacts connected in June and July, dehydration indicator said 3, 4, switch contacts connected, and reversing lights are not bright said 5, and 6 are not connected with the 6, 7, to stop time.
