DC rated voltage: 110, 220
Rated holding current of intermediate components: 0.25, 0.5, 1, 2.5
Time element setting range: 1.2~5
Time to prepare for the next action: 15~25
Application Range
It is used as the main component to realize three-phase primary reclosing connection on transmission line.It is composed of time element DS-22, intermediate element ZJ, capacitor C, resistor R, signal lamp and so on.
Main technical parameters
|
DC rated voltage (V) |
Intermediate element Rated holding current ( A) |
Time element setting range（S） |
Prepare for the next action（S） |
|
110，220 |
0 . 25，0 . 5，1，2 . 5 |
1 . 2 - 5 |
15 - 25 |

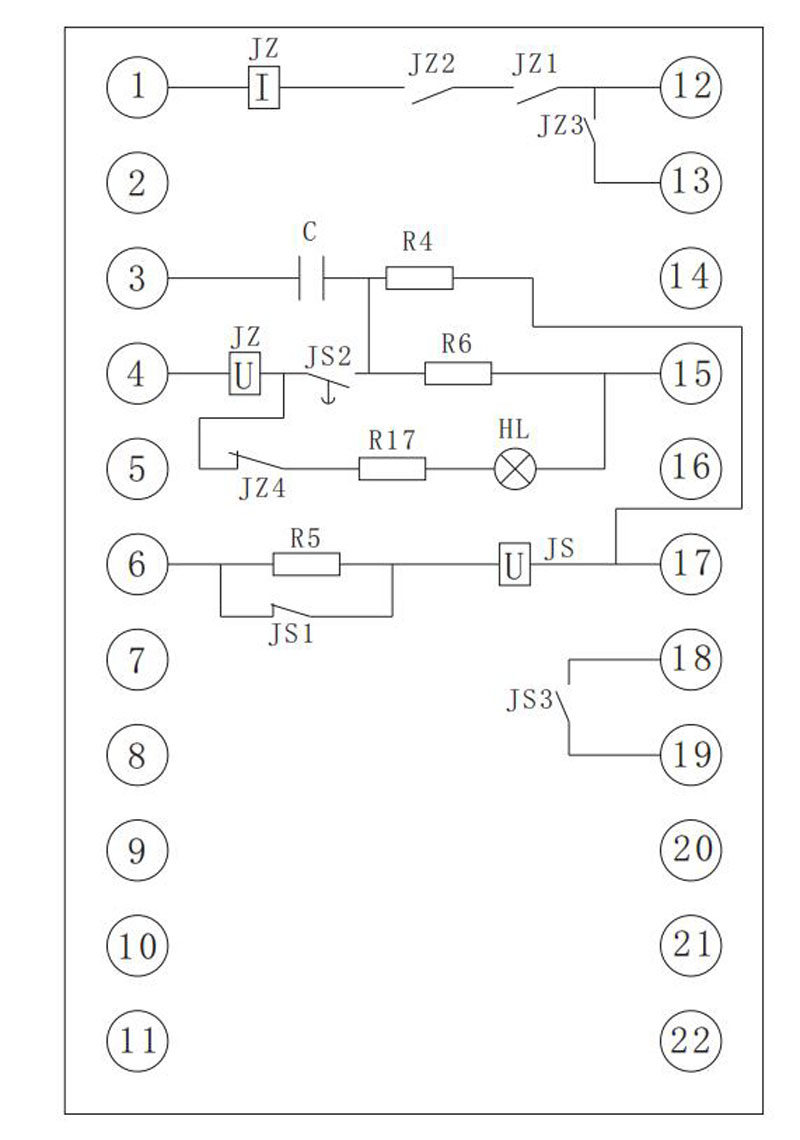

Internal wiring diagram

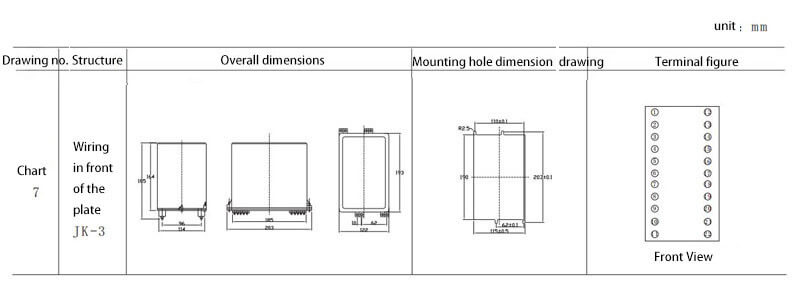

Appearance and hole size
Relay adopts JK-3 housing with external dimensions. See FIG. 7 attached on page 290 of this manual for the drawing of mounting holes.
