DX-1 Flash and signal relay

Rated voltage: DC220V, 110V, 48V
Operating voltage: ≤70%
Flash frequency: 60±20 times per minute
Contact form: two action closing, action breaking
Contact capacity: DC: 50W, AC: 250VA
Power consumption: ≤5W

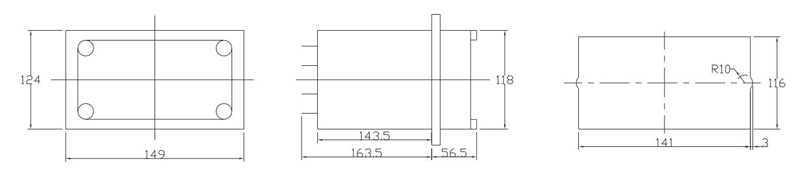

External dimension: 149×124×220mm
Opening size: 143×113mm

Download

Product overview
Product parameter

Usage

DX-1 flash relays are used in signal circuits.When the power supply of the working coil is switched on, the contact can be switched on and off periodically, causing the controlled light signal to flash.

Main technical parameters

Rated value :DC 220V,110V,48V;
Contact form: 2 groups of dynamic closing, 1 group of dynamic breaking;
Flash frequency: 60±20 times per minute.
Action value: not more than 70% rating.
Power consumption: not more than 3W.
Contact capacity: In the dc inductive load circuit with voltage no more than 250V, current no more than 5A and time constant of 5+0.75ms, the disconnect capacity of the product output contact is 50W.The output contact can reliably operate and return 5X10 times under the above specified load conditions.The output contact is allowed to be switched on for a long time with 5A.
Dielectric strength: all conductive terminals of the product are connected together, and can withstand 2000V (effective value) 50Hz AC voltage test for 1 minute between exposed non-charged metal parts or shells, without insulation breakdown or flasticity phenomenon.

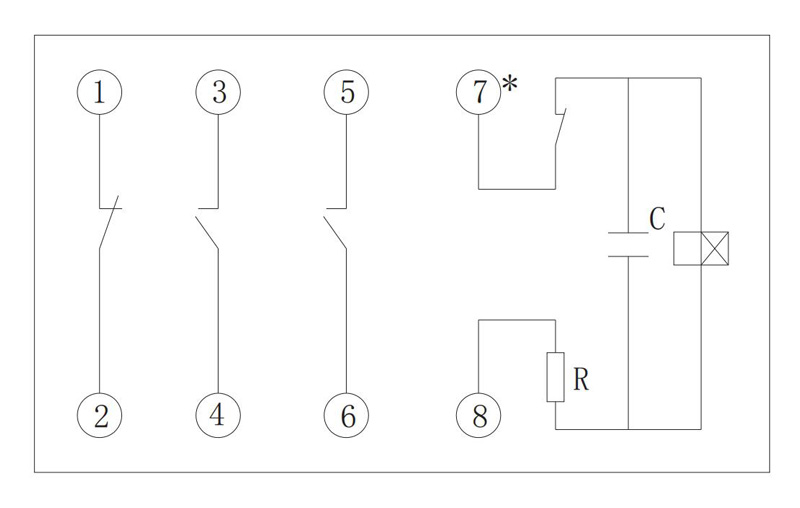

Internal wiring

dx 1sg xhjdq 2
