DX-3 Flash and signal relay

Rated voltage (V) : DC 220, 110, 48 AC:220, 127, 110
Contact form: 2 dynamic closing and 1 dynamic breaking
Operating voltage: ≦80% of the rating
Flash frequency (times /min) : 40-100
Power consumption: DC:5W AC:15VA
Contact disconnection capacity: DC: 50W AC: 250VA

Download

Product overview
Product parameter

Usage

DX-3 flash relay is used for signal indication. In case of failure of the protected system and relay operation of the main protection, various light signals are controlled through the contacts of the flash relay.

Main technical parameters

Rated value: DC 220V,110V,48V;AC 220 v, 110 v;
Flash frequency: 40-100 times per minute.
Contact capacity: In the dc inductive load circuit with voltage no more than 250V, current no more than 5A and time constant of 5+0.75ms, the disconnect capacity of the product output contact is 50W.The output contact can reliably operate and return 5X10 times under the above specified load conditions.The output contact is allowed to be switched on for a long time with 5A.
Dielectric strength: all conductive terminals of the product are connected together, and can withstand 2000V (effective value) 50Hz AC voltage between exposed non-charged metal parts or shells. The test lasts for 1 minute without insulation breakdown or flashover.

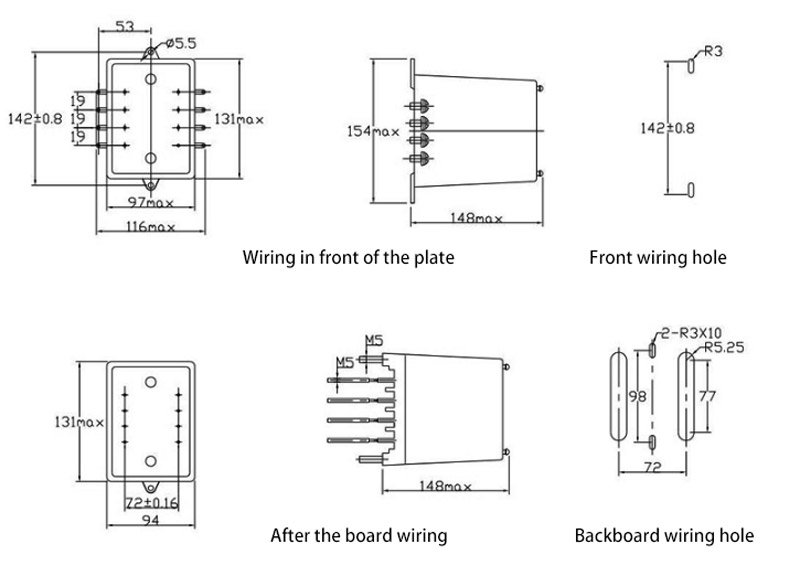

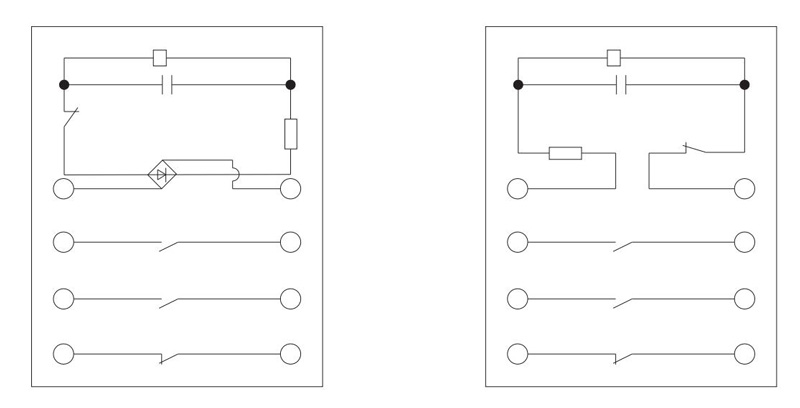

Internal wiring
