The machine features
●Super anti - interference, high reliability, widely used in industrial automation control system
●Standard external size (48×48mm), easy opening
●High frequency crystal oscillator frequency division technology, accurate timing, high precision
●Timing, counting, rotation speed, frequency, accumulation and other more than one, high cost performance
●In line with GB14048.5-2001 and other national or industry standards, high quality, high performance
●Strictly according to the standard production, 9 procedures, 5 times of strict inspection, rest assured use
Main technical parameters
|
Working power supply |
According to the housing identification, the voltage fluctuation range is 85%~110%Ue |
Mechanical life |
≥1000000times |
|
Power consumption |
≤3VA |
Electrical life |
≥100000 times |
|
The use of temperature |
-5℃-~45℃ |
The pause time |
≥0.05s |
|
Storage temperature |
-20℃~70℃ |
Reset the time |
≥0.05s |
|
Auxiliary power |
DC12V 30mA |
The power to restart |
≥1s |
|
Working humidity |
35-85%RH |
installation |
Face plate type hole size46mmX46mm |
|
Contact capacity |
AC250V 5A COSØ=1； DC24V 7A |
The product weight |
约150g |
Electrical characteristic parameter
|
Insulation impedance |
100MΩ |
pressure |
AC2000V 50/60HZ 1minn |
|
anti-interference |
EFT performs GB/T17626-4 levels |
impact |
Impact resistance: 30G X, Y and Z for 3 times each |
|
anti-interference |
ESD performs LEVEL GB/T17626-4 |
impact |
False action: 10G X, Y, Z 3 times each |
|
vibration |
Anti-vibration: 10-55Hz (cycle 1 minute) amplitude 0.75mm,X, Y, Z direction for 1 hour each |
||
|
vibration |
False action: 10-55Hz (cycle 1 minute) amplitude 0.50mm,X, Y, Z direction for 10 minutes each |
||
External dimension (mm)

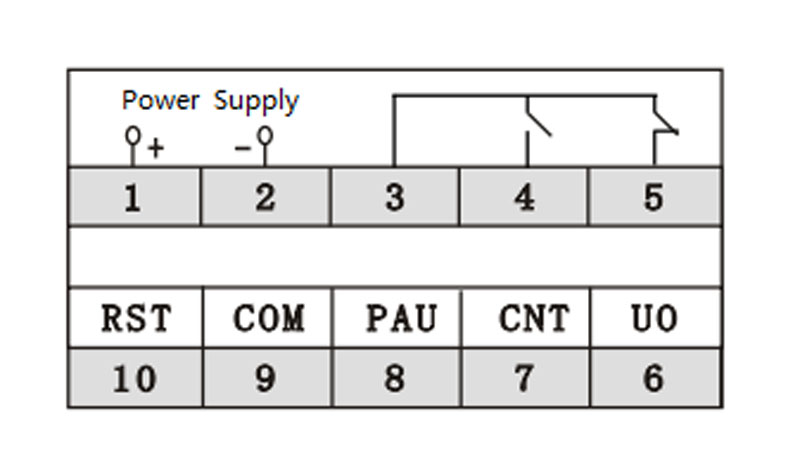

Product wiring diagram
