Summarize
The lamp light switch automatic controller is used for ac 50HZ, rated tower AC220V or DC voltage 24V control circuit as light switch components.According to the natural light in the morning light automatically off, dark night automatically turn on the street lamp.
Main technical parameters
|
Model |
NDQ12-1 (GUK-81) |
NDQ12-2 (GUK-82) |
NDQ12-3 (GUK-83) |
NDQ12-4 (GUK-84) |
NDQ13 |
NDQ14 (KG-2) |
|
Working power supply |
AC220V 50Hz Allowable fluctuation range（85% 110%）Ue；DC24V |
|||||
|
Working power supply |
10A |
40A |
60A |
120A |
5A |
5A |
|
Contact capacity |
≤2VA |
|||||
|
Power consumption |
Outdoor type installation type |
Outdoor type installation type |
||||

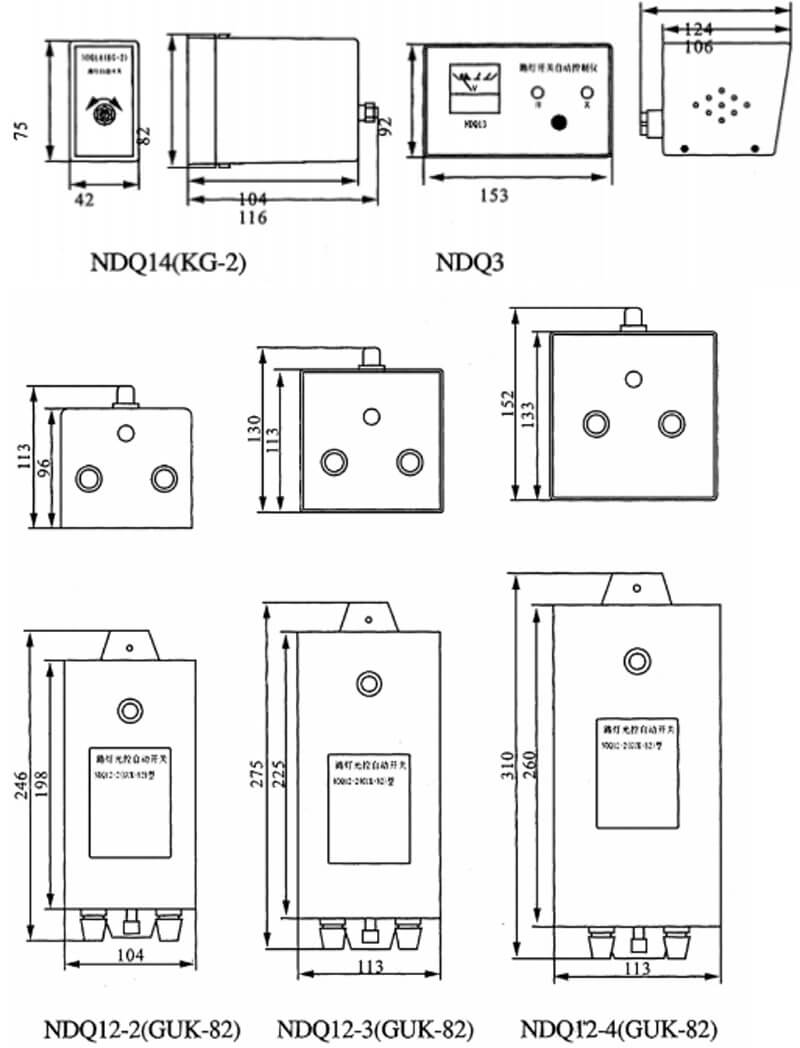

Appearance and installation dimension drawing

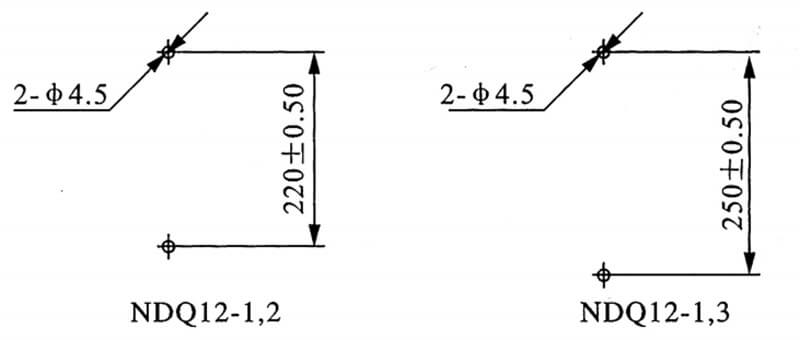

Installation dimension drawing

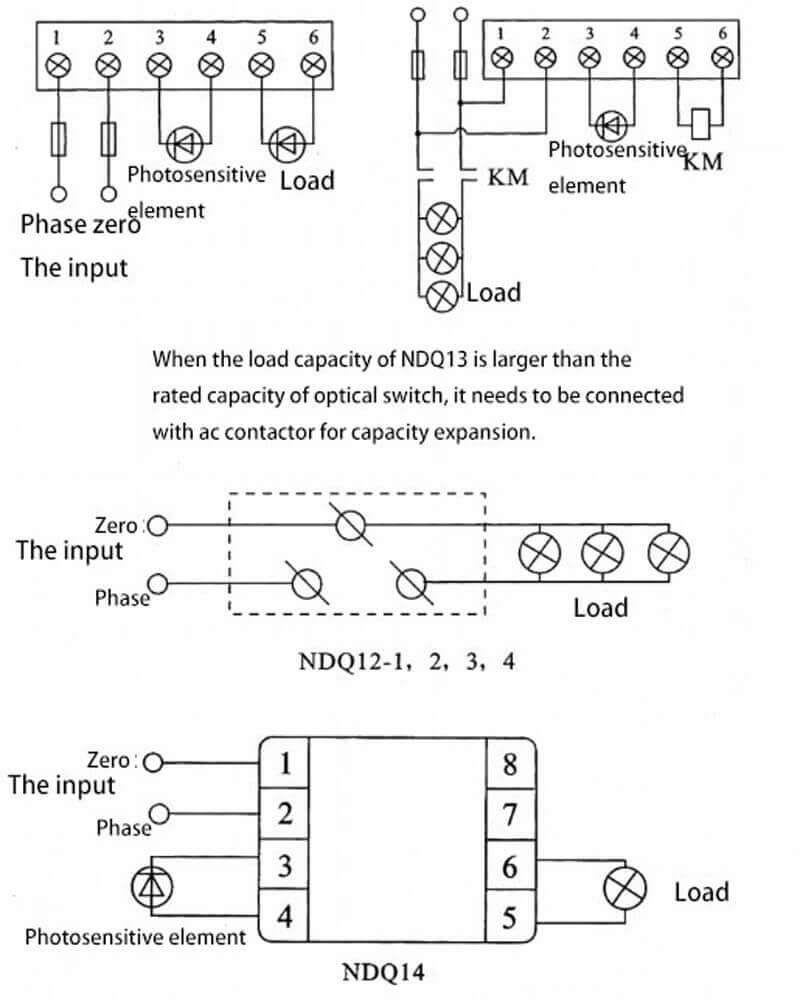

The wiring diagram
Directions for use
1. Install the light control switch of street lamps on the wire posts placed by street lamps or where there is natural light. Clean the dust of the light control switch on street lamps in time or regularly, so as not to affect the photoelectric conversion effect.
2. The photoelectric head should be placed in a natural environment free from interference from other light sources. If the street lamp is not turned in when the light is bright in the morning, and it is not turned on in the dark at night, please check whether the installation position of the photoelectric head is correct.
3. The contact capacity value of the light control switch of street lamps shall be subject to the nominal value on the label.
