LY-30 Series voltage relays

Rated voltage: parallel coil: 30, 100, 200V;
Coil series: 60, 200, 400
Setting current range: 12-48V, 40-160V, 80-320V
Contact type: move break, move close, move break close, two move break, two move close
Return coefficient: 1.25
Power consumption: 1VA at minimum setting voltage
Contact capacity: dc 50W;Ac 250 va
Dimensions: LY31~35 Front wiring 154x116x141
Rear connection: 128x94x181;LY-34~37:106x60x146

Download

Product overview
Product parameter

Application Range

The relay is rectifying type transient voltage relay, used as undervoltage latch-on starting element in the circuit of relay protection device, replacing DJ-100A series, DY-36C-DY-29C,DY-35 and type 36 voltage relays.

Main technical parameters

Action time: relay on the 0.5 times the measured value, the action time is not more than 0.15 s.
Contact form: 1, 1 break, 1 move in 1, 2 dynamic, 2 move off.
Contact capacity: in voltage not over 250 v, current is not more than 5 a, time constant of 5 + 0.75 ms in dc circuit, the inductive load product output contact breaking capacity of 50 w.Output contact under the above specified load, the product can reliably operate and return 5x10 times.The output contact is allowed to be switched on for a long time with 5A

Model	Setting range（V)	Rated voltage（V)		Long term allowable voltage（V)		Return to the coefficient
Model	Setting range（V)	Coil in series	Coil in parallel	Coil in series	Coil in parallel	Return to the coefficient
LY-31-37	15-60	100	200	110	220	≤1.25
	40-60	100	200	110	220
	80-320	200	400	220	440

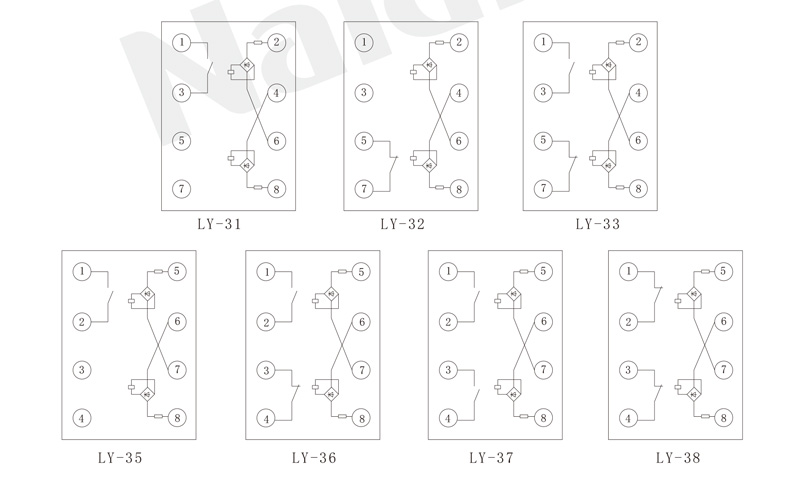

Internal wiring

ly 30xldyjdq 2

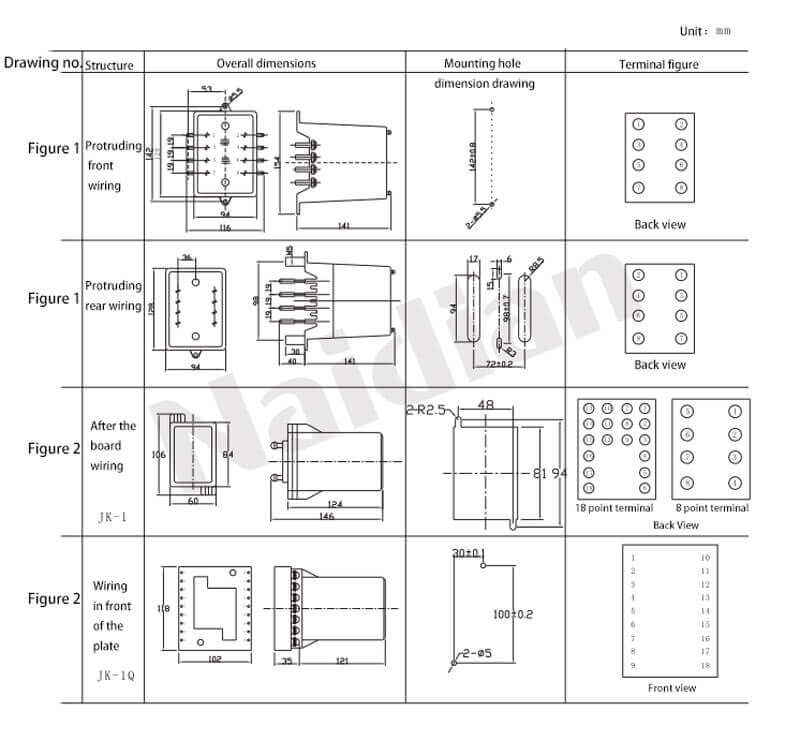

Dimensions and opening dimensions

LY-31-LY-33 shell adopts protruding fixed wiring structure. See figure 1 attached to this manual for its appearance and installation hole size.
LY-34-LY-37 shell adopts the protruding plug structure. See figure 2 attached to this manual for its appearance and installation hole size.

ly 30xldyjdq 03
